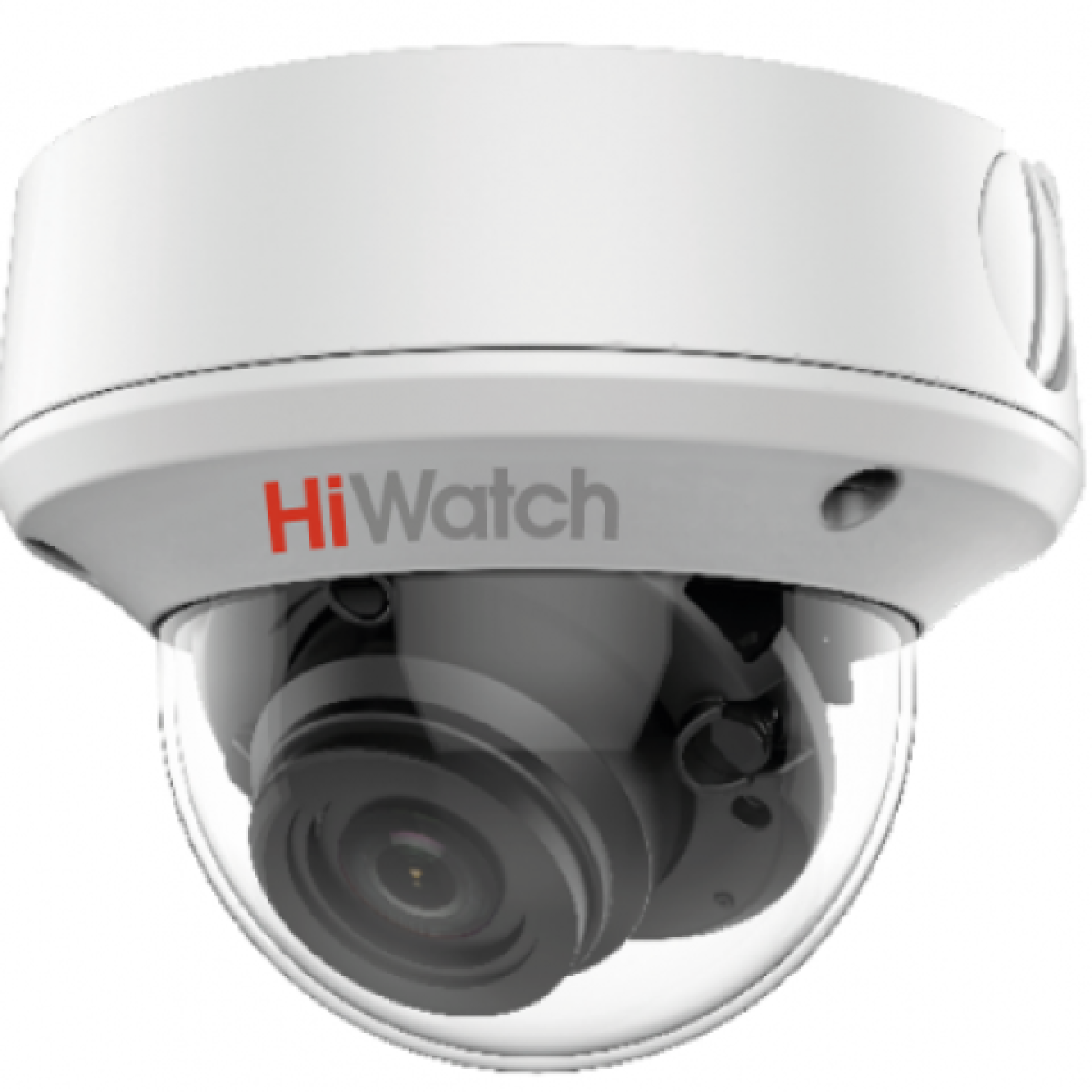

Hiwatch DS-T508 (2.7-13.5mm), HDTVI, 5MP, Dome, VF, IR40M
Camera
5 mp cmos sensor
Pal/NTSC signal transfer standard
Resolution 2560 × 1944
TVI Face Frequency: 5m@20fps, 4m@30fps, 4m@25fps, 1080p@30fps, 1080p@25fps
AHD: 5 m @ 20 fps, 4 m @ 30 fps, 4 m @ 25 fps
CVI: 4 m @ 30 fps, 4 m @ 25 fps
CVBS: PAL/NTSC
Sensitivity to 0.01 lux @ (F1.2, AGC involved), 0 lux irt lights
Electronic shutter speed pal: 1/25 to 1/50000 sec; NTSC: 1/30 to 1/50000 sec
Lens motorized varifocal lens from 2.7 to 13.5 mm
Vision angle horizontal: 95 to 26 °, vertical: 72 to 20 °, diagonal: 126 to 33 °
Lens clamp φ 14
Day/Night mode Ir cutting filter
Wide dynamic range (WDR) Digital WDR
Installing angular adjustment panel: 0 to 355 °, tilting: 0 to 75 °, rotation: 0 to 355 °
OSD menu settings
Day / Night Mode Automatic / Color / B / W
Picture mode STD/HIGH-SAT
AGC yes
White Balance Automatic / Guide
Exposure mode (automatic) DWDR / BLC / HLC / Global
2D DNR noise reduction
English language
Characterized by brightness, sharpness, intelligent ir
Interface
Video Output switch TVI/AHD/CVI/CVBS
Basics
Ir Lighting range up to 40 m
Working conditions from -40 to +60 ° C, humidity: 90% or less (non-radensible)
Feeding Block DC 12 V ± 15%, AC 24 V ± 15%
Energy consumption Max. 5,9 watts
Protection Level IP67, IK10
Material for metal
Hikvision-c communicating
Dimensions Ø145 × 111.3 mm (5.69 × 4.37 \ ")
Weight 837 g
